Purpose
This Blog defines the standardized process for upgrading Cisco Catalyst 9200L switches running Cisco IOS-XE software in an enterprise environment. Cisco IOS-XE Upgrade : Easy Step-by-Step Guide 2026
Scope
Applicable to Cisco Catalyst 9200 Family standalone and stack deployments operating in Install Modd’s
Change Impact Assessment – Cisco IOS-XE Upgrade : Easy Step-by-Step Guide 2026
Please note that a service interruption is expected during the reload process. Typically, the estimated downtime is 15–30 minutes. However, additional downtime may occur if a bootloader upgrade is required.
Risk Assessment – Cisco IOS-XE Upgrade : Easy Step-by-Step Guide 2026
Prior to execution, verify image integrity, available flash space, boot variables, and power stability. Furthermore, review the applicable Cisco release notes to ensure that all prerequisites are met and to understand any potential risks or upgrade requirements.
Prerequisites
Backup configuration, verify current version, confirm maintenance window, and download approved IOS image.
Pre-Upgrade Validation – Cisco IOS-XE Upgrade : Easy Step-by-Step Guide 2026

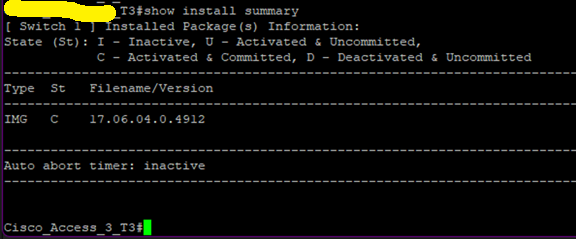

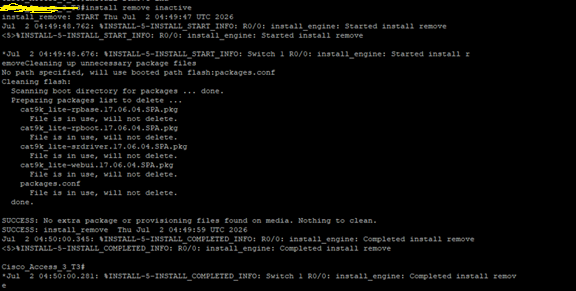

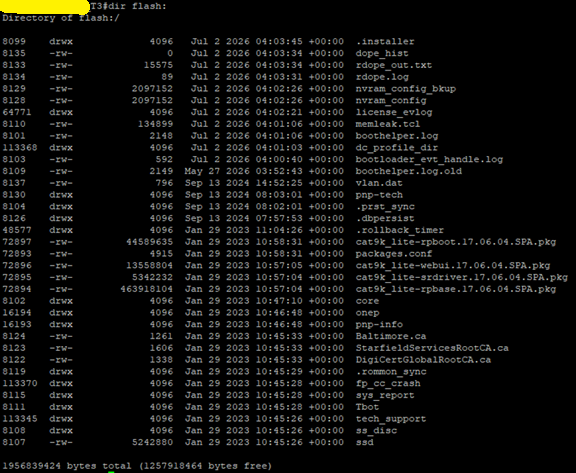

Run show version, show boot, show install summary, dir flash:, and install remove inactive if required. Cisco Catalyst IOS-XE Upgrade Procedure: Easy Step-by-Step Guide 2026
Image Transfer and Integrity Verification – Cisco IOS-XE Upgrade : Easy Step-by-Step Guide 2026

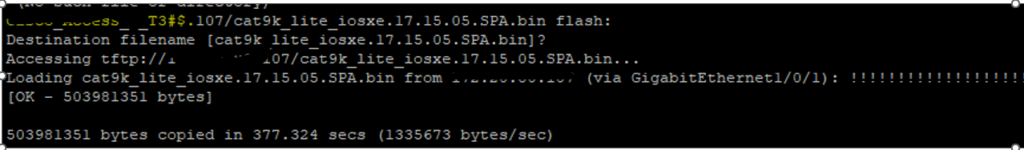

Before installation, copy the image to the flash storage and verify its integrity using the verify /md5 or verify /sha512 command. This ensures that the image has not been corrupted during the transfer process.
check Above result value and compare with Cisco portal provided value. If same, you file is correct.

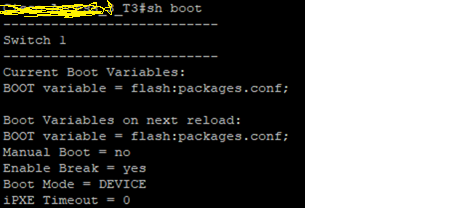

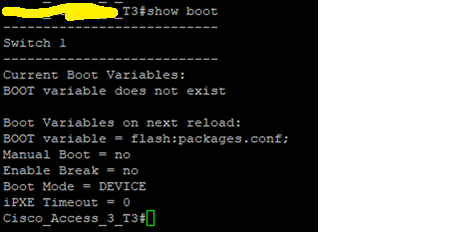

Boot Variable Validation
Configure > boot system flash:packages.conf, no boot manual, save configuration, and validate using show boot.
Upgrade Procedure – Cisco IOS-XE Upgrade : Easy Step-by-Step Guide 2026

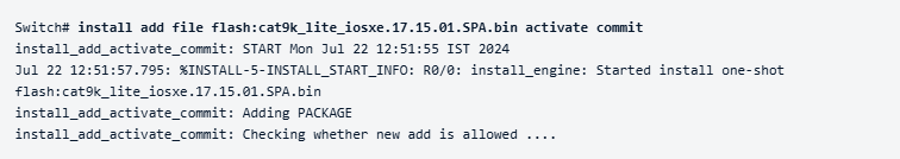

Execute: install add file flash:<image>.bin activate commit. Monitor Add, Activate, Commit, and automatic reload phases.
Command – install add file flash:(Image Name) activate commit
Bootloader Upgrade Behavior
Some releases perform automatic ROMMON/bootloader upgrades and may reboot a second time.

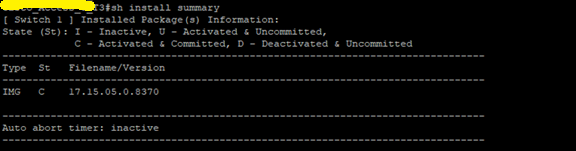

Post-Upgrade Validation
Verify show version, install summary, show boot, show switch, interface status, logs, and management access.
Rollback Plan
Use install rollback to committed or follow TAC-recommended recovery procedures if validation fails.
Success Criteria
Correct IOS version, Active/Committed state, healthy interfaces, routing, switching, and no critical errors.
Approval Section
Requestor, Network Manager, Change Manager, and CAB approval signatures.
Key Commands
show version
show boot
show install summary
dir flash:
install remove inactive
copy tftp: flash:
verify /sha512 flash:<image>.bin
boot system flash:packages.conf
no boot manual
write memory
install add file flash:<image>.bin activate commit
Follow My blogs for more technical Content.
